CONSTRUCTION
Outside Corner Line Block
A premium, American-engineered specialty line block for outside corner corbelling – allows quick line adjustments in two directions up to 1-1/4″. This line block is made to hold the line and take the abuse of a real job site.
MADE IN USA | BUILT FOR COMMERCIAL MASONRY
BUILT BETTER
• Main block
• Pivot arm
• Pivot arm pin
• Pivot arm locking pin
• Index pin (x2)
XO-Tec builds the American-engineered answer – precision tools designed for the way commercial crews actually work.
FEATURES
The XO-Tec OC Line Block is designed for corbelling. However, it can be used for any wall. This outside corner line block has you covered for all your needs. Just slide this block up the pole as you build the wall.

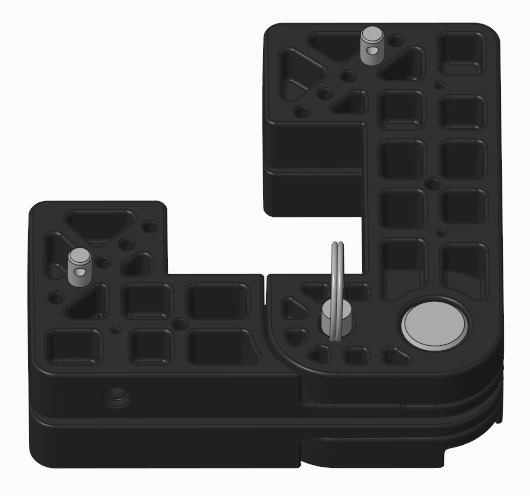

OC Line Block (Outside Corner)
Dual-Side Depth Adjust – Index pins set line depth up to 1-1/4″ on both faces — lock the line exactly where the corner needs it, in either direction.

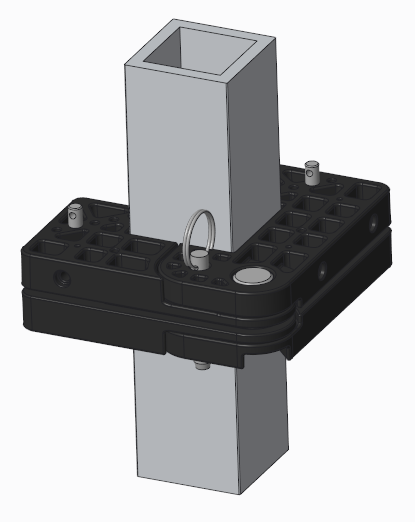

Pivot Arm w/ Locking Pin – The pivoting arm wraps the story pole and locks with a pin, securing the block firmly to the outside corner.
Built for the Exposed Corner – Engineered for the hardest point on the wall — the outside corner — where the line has to hold true around an open edge.
SPECIFICATIONS
Adjustable Depth: Up to 1-1/4″
Six Indexed Positions: 0″, 1/4″, 1/2″, 3/4″, 1″, & 1-1/4″
Built For: 2″ x 2″ Story Poles
Mounting: Pivot arm secures block
