CONSTRUCTION
End of Wall Line Block
A premium, American-engineered specialty line block for end of wall corbelling – allows quick line adjustment up to 1-1/4″. This line block is made to hold the line and take the abuse of a real job site.
MADE IN USA | BUILT FOR COMMERCIAL MASONRY
BUILT BETTER
• Main block
• Index pin (x2)
• Integrated wrapping tabs
XO-Tec builds the American-engineered answer – precision tools designed for the way commercial crews actually work.
FEATURES

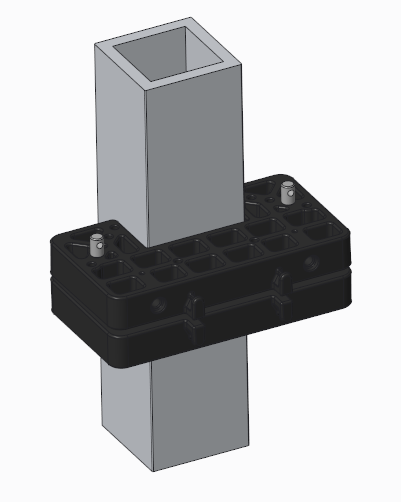

The XO-Tec EOW Line Block is designed for corbelling. However, it can be used for any wall. This end of wall line block has you covered for all your needs. Just slide this block up the pole as you build the wall.
EOW Line Block (End of Wall)
Depth Adjustment Holes – Index pins set line depth up to 1-1/4″ — fast, repeatable placement at the end of the wall.
Wrapping Tabs – Secure the block to the story pole by wrapping the line around the tabs in a figure-8 after the line is pulled tight — no slip, no drift.
Clean Wall Terminations – Purpose-built for where the wall ends, holding the line steady in a single direction with zero guesswork.
SPECIFICATIONS
Adjustable Depth: Up to 1-1/4″
Six Indexed Positions: 0″, 1/4″, 1/2″, 3/4″, 1″, & 1-1/4″
Built For: 2″ x 2″ Story Poles
Mounting: Locking tab secures block
